SERAPH Carbon frame Disc brake Gravel Bike Full Hidden Cable bicycle part Carbon Fiber T1000 T47 Max Tire 700X50C GR048
about headsets
NOTE:All the frames in the store not include headsets and thur axle,
Headsets:1set/10usd.
Thur axle :1pair/30usd.
Fender parts:10usd/pcs
Product Description
| Frame Model: | Full hidden cable gravel |
| Frame Rear Space: | GR048 |
| Material: | Hight Modulus Toray t1000 Carbon Fiber |
| Size: | XS/S/M/L/XL |

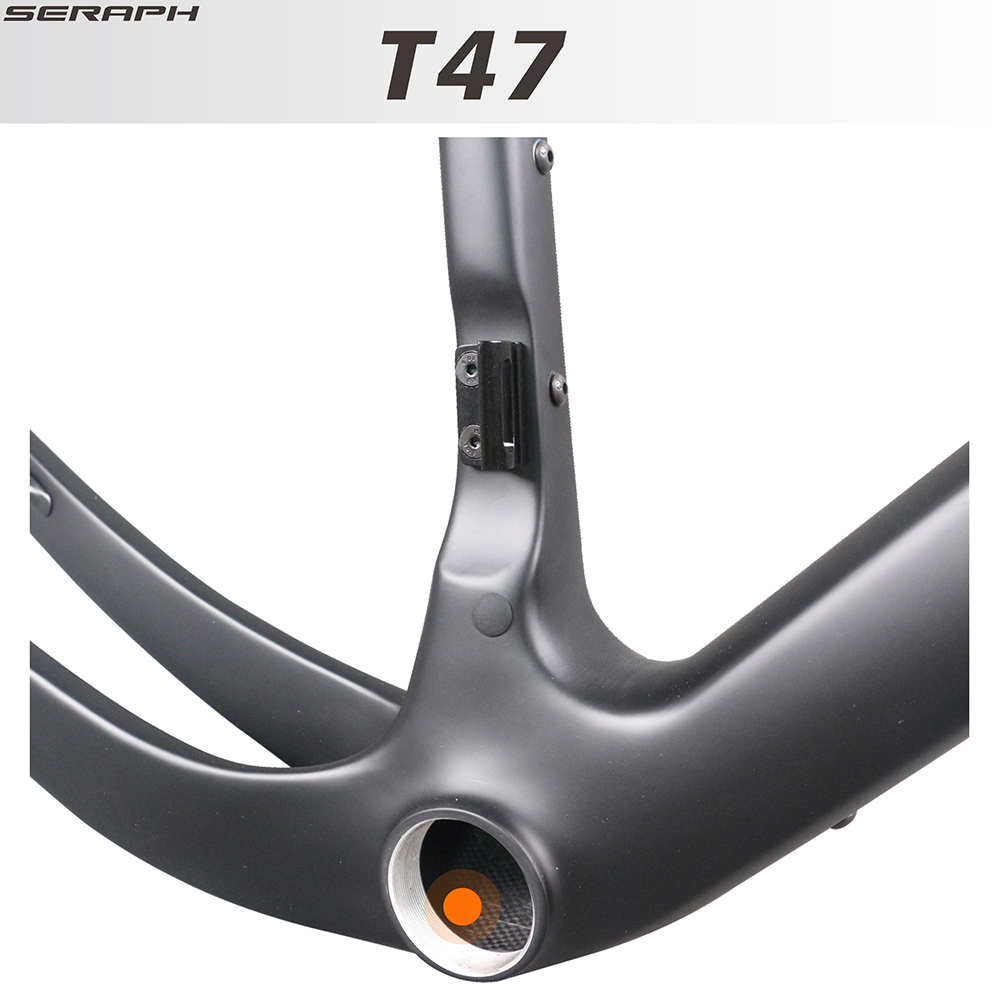

| Bottom Bracket: | T47 thread |
| Seatpost: | zero/setback seatpost |
| Headset: | 1 -1/2 "above and 1 -1/2" below |
| Seatpost size: | 27.2mm seatpost |
| Weave: | UD |
| Frame weight: | 1217/+-40g (M) |
| Fork weight: | 441/+-30g |
| seat post weight: | 169/+-20g |
| HB047 handlebar weight: | 349/+-20g |

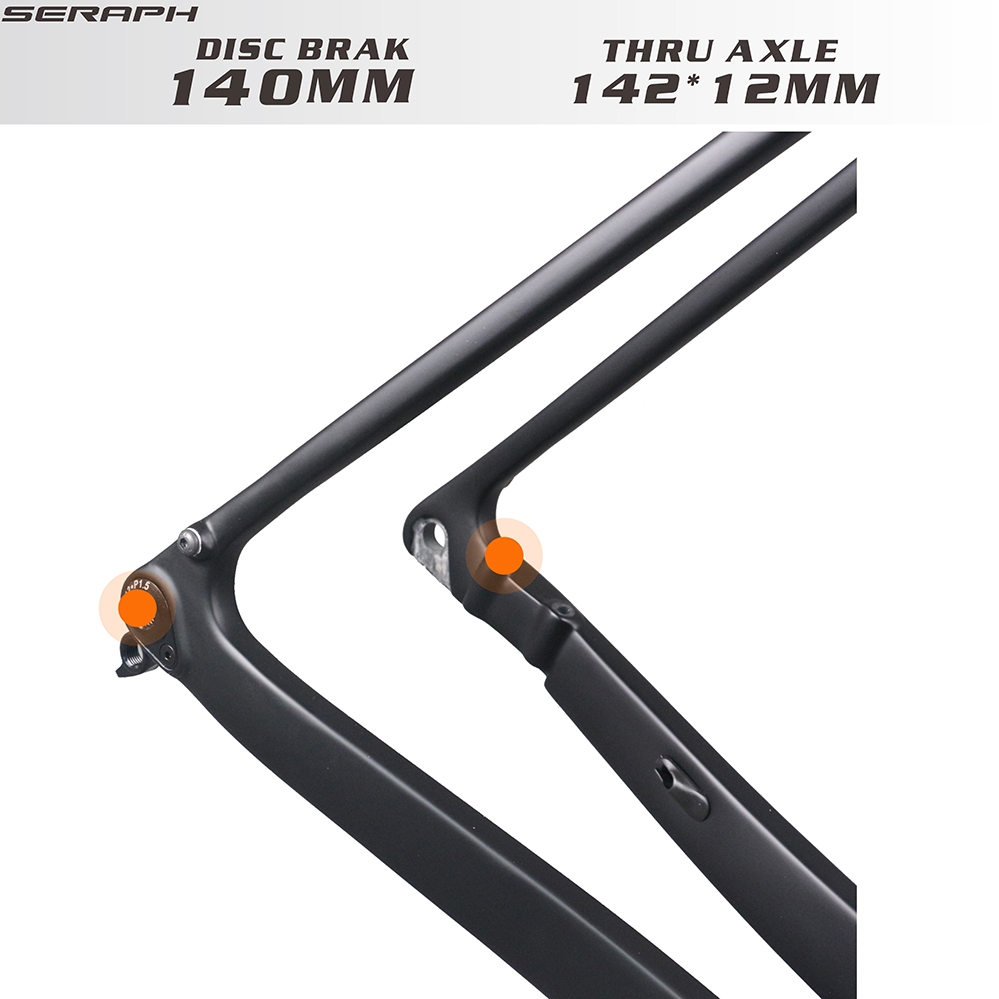

| Disc Rotor: | Front and Rear 140mm (if 160mm need add adapter ) |
| Stem Size: | 70/80/90/100/110/120mm |
| Handlebar size: | 430/450/470/490mm |
| Frame Rear Space: | 142*12mm |
| Thru-axle Fork spacer : | 100*12mm |
| Cable Type: | Internal cable |
| Max Tire: | 700C*50C |
| Thru-axle Groupset: | Di2 and Mechanical Compatible |
| Brake Type: | Flat Mount Disc Brake |
| Warranty: | 2 years |
