2022 New Brand Design 27.5er Full Suspension Electric Mountain Frame 148*12mm Bafang M620 1000W Carbon E-bike
Category: 2025 New Product  Publish Time: 2022-03-02 15:33
E-mail : info@tantancycling.com

 2022 New Brand Design 27.5er Full Suspension Electric Mountain Frame 148*12mm Bafang M620 1000W Carbon E-bike
Price : $750.00
Delivery Fee : $150.00
Quantity :
Model Number
E23
Frame Type
Carbon BAFANG MAX M620 Motor Suspension Electric Bike Frame
Carbon Fiber
T800 Japan Carbon Fiber
Carbon Weave
UD
Headset
1-1/8''-1-1/2'' Tapered
Seatpost Size
31.6mm
Rear Shox Size
230*65mm
Travel
160mm Front And Rear
Rear End
12*148mm Thru Axle
Painting
Matt Finished/ Customzied
Battery Capacity
48V-14AH External Battery Type
Weight
2500g+/-100g
Warranty
Two Years
Lead Time
60 Days For 100 sets


The lower bushing specification is M8*22, and the upper bushing specification is M8*24.

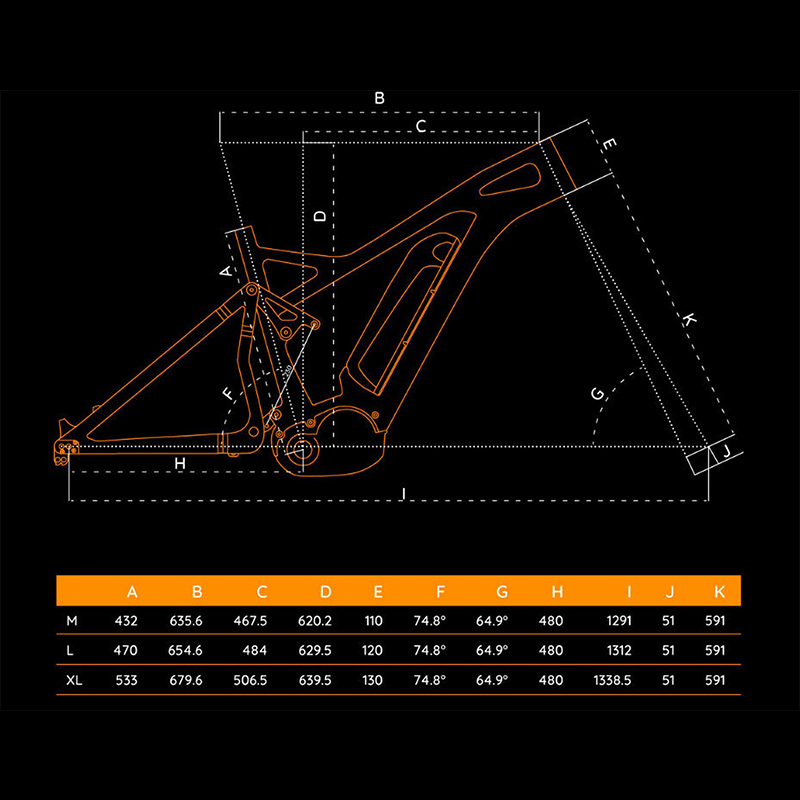

Product Paramenters

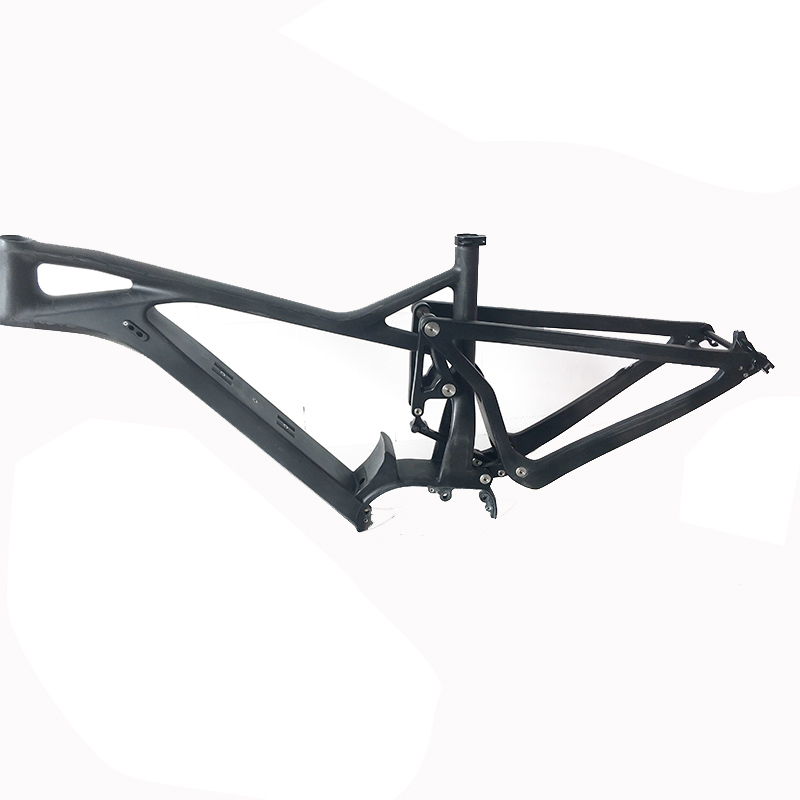

Details Images
Company Profile
We are carbon fiiber bike frame factory for more than years. We are specialzied in OEM or ODM for brands customers. Our factory
focus on carbon Mountain, Fat And Road electric bicycle frame production from 2015. We do the carbon electric bicycle frame with
most motors in the market. We strictly follow the ISO 4210 test standard. Please contact me for talking about your new projects.

The lead time for 3D drawing is 15 days. One week for 3D confirmation and changes. And 15 days for mould finished. And 20 days for
prototype and testing. And another 20 days for first sample for assembling checking.

We have a lot of experience to do electric bike frame with Bafan, Shiman, Bosck, Bros, Yamah motor system. Please give me feedback
and I will show you some projects we have made. Our main customers are in USA, Germany, Spain, England, Canada and France. But we
hope we can work with you if you have new project about electric bike frame.
